Steel gantry framework
A steel gantry runs on rubber tyres rather than fixed yard rails. The source describes steering and relocation between operating zones.

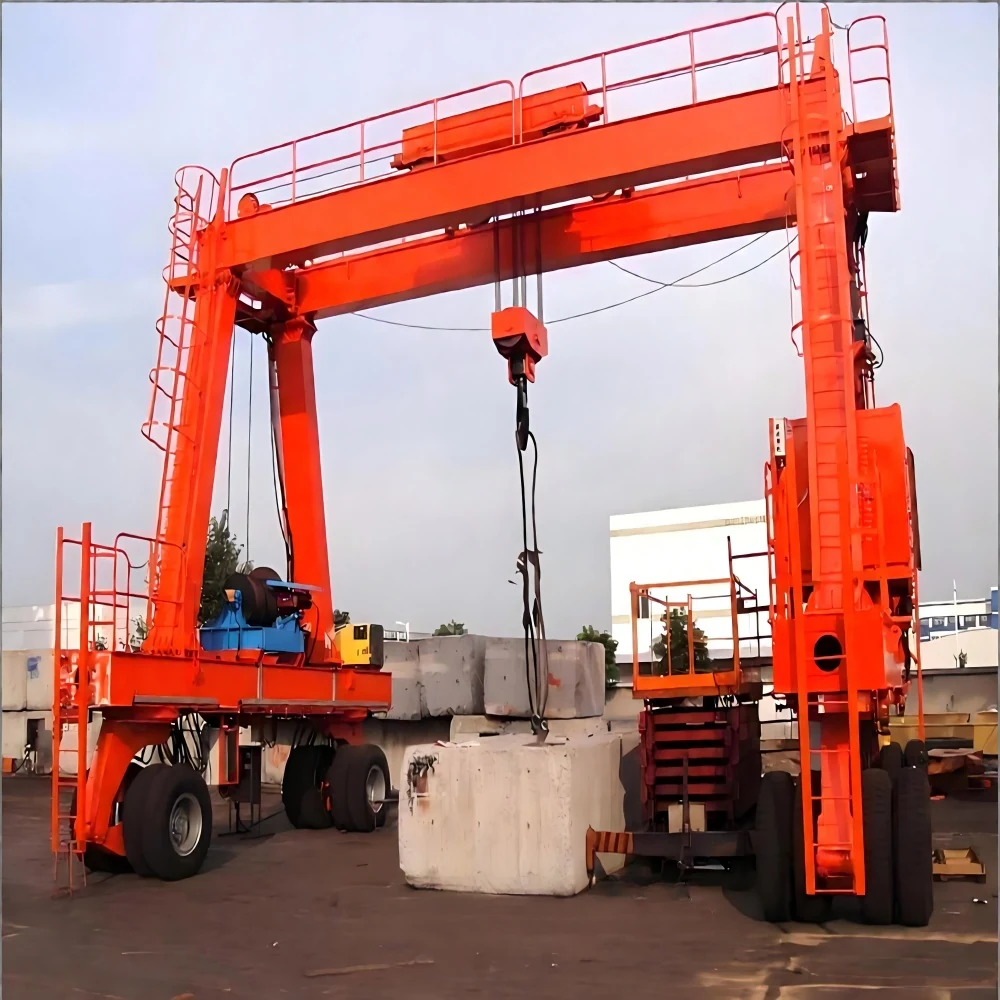

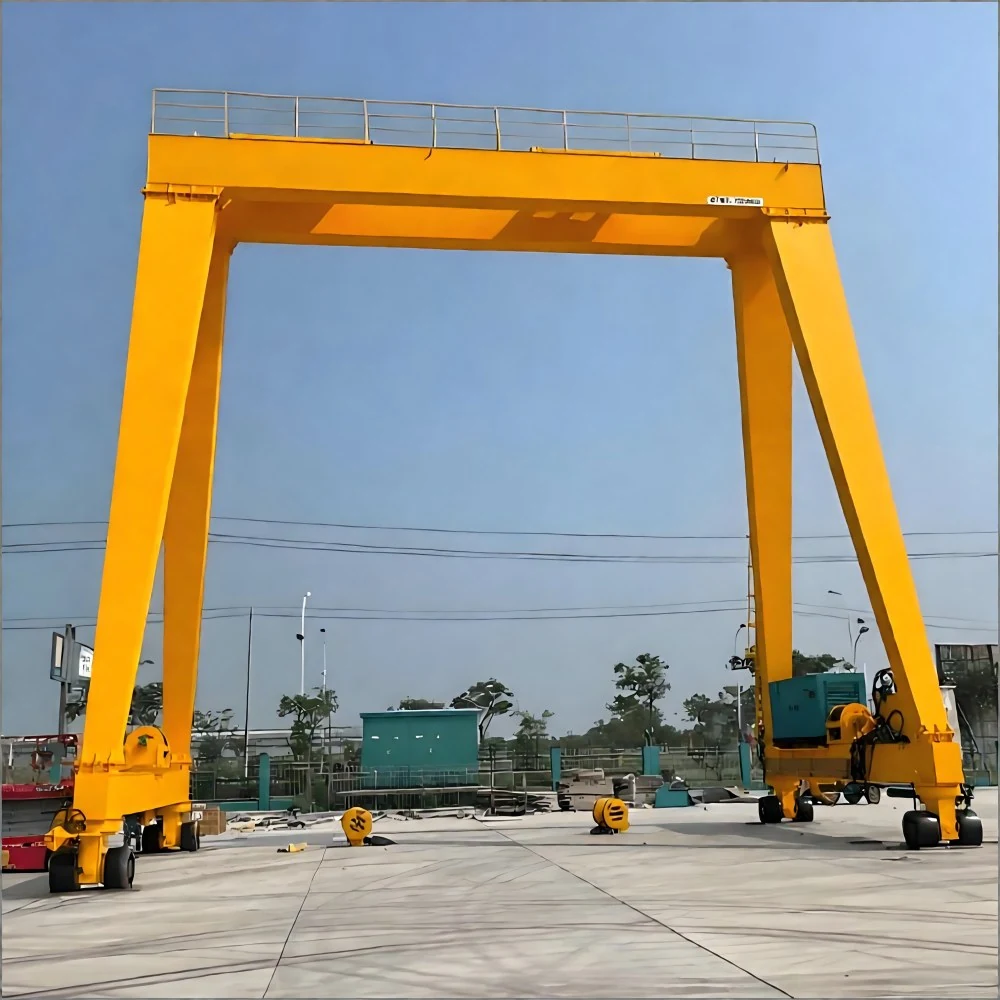

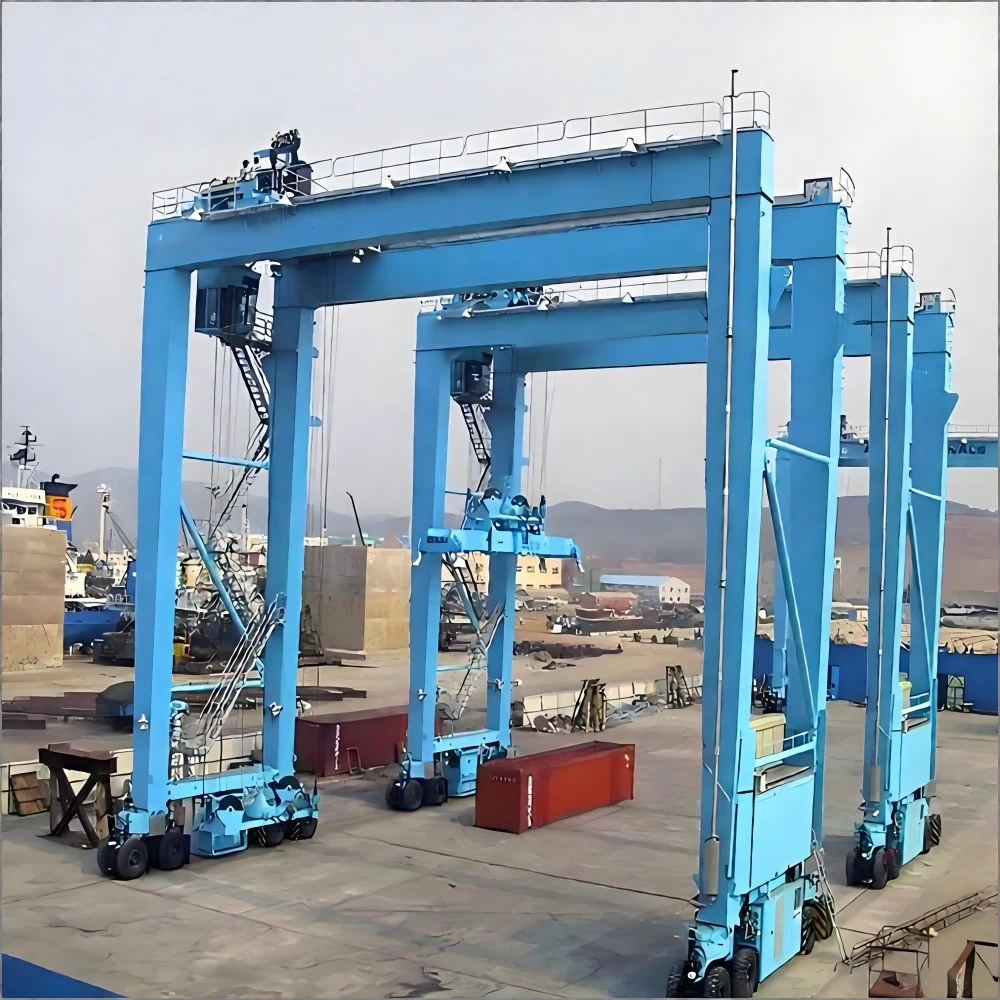

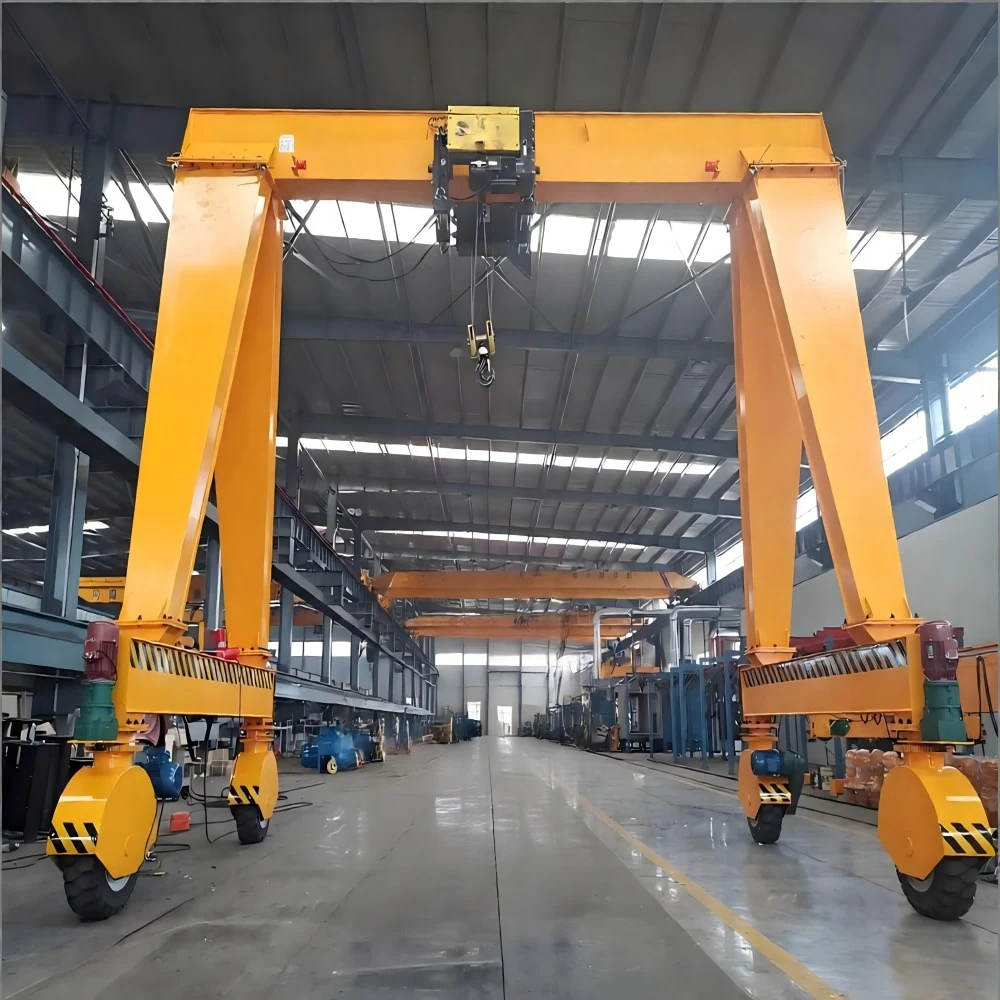

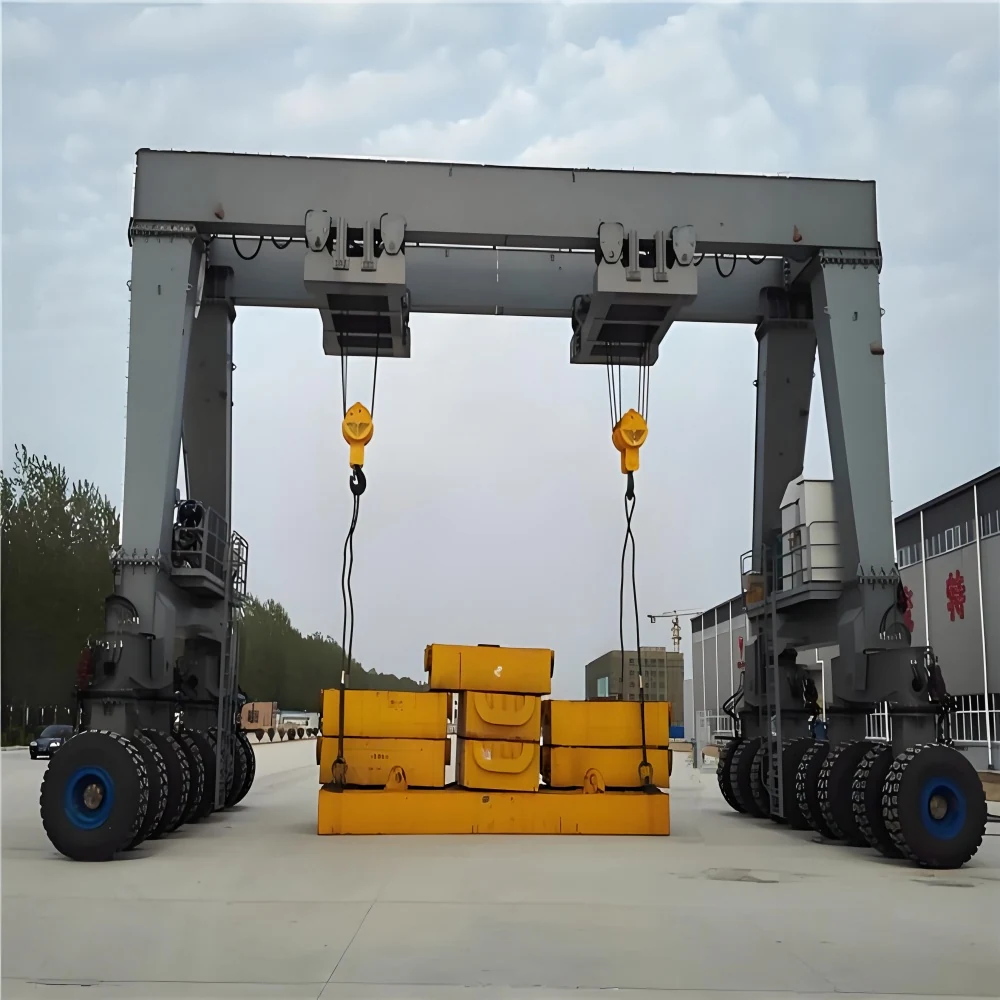

Supplied RTG Rubber Tyre Gantry Crane image 1. Model, rating and image-use rights remain to be verified.
Gantry Crane / crane detail review
RTG Rubber Tyre Gantry Crane
Rubber-tyred gantry equipment described for container yards and relocatable handling zones.
- Lifting Capacity
- 5 - 100t/Container 30 - 60t(customizable)
- Span
- 8 - 35m(non‑standard span available)
Source family ranges — exact configuration pending.
Source headline: Heavy‑duty RTG Rubber Tyre Gantry Crane for Container Yard Handling. The full source table is a family / option range, not the specification of one selected unit. Model, drawing and test evidence remain pending.
overview
What this equipment is designed to do.
Rubber-tyred gantry equipment described for container yards and relocatable handling zones.
A steel gantry runs on rubber tyres rather than fixed yard rails. The source describes steering and relocation between operating zones.
Hook, grab, magnet and container-spreader arrangements are listed as alternatives; capacity depends on the selected attachment.
Diesel-generator, cable-reel and hybrid power are source options. Ground bearing, tyre pressure and steering clearance need a site-specific review.
The table below preserves every supplied parameter row. Exact model association, drawings and test evidence remain open; source family maxima must not be combined into an assumed build.
structure
Structure & installation interfaces.
Rubber-tyred travel and steering
Hook, grab, magnet and container-spreader arrangements are listed as alternatives; capacity depends on the selected attachment.
Hoisting attachment and operator controls
Diesel-generator, cable-reel and hybrid power are source options. Ground bearing, tyre pressure and steering clearance need a site-specific review.
Engineering drawings pending
No approved dimensions, interface drawing, load reaction, wiring diagram or downloadable engineering file was supplied. Request the selected model and site-specific drawing before installation.
specifications
Capacity, geometry & control data.
Supplied technical table, transcribed without selecting a model. Ranges and options must not be combined into an assumed build.
| Parameter | Source value / pending evidence | Selection boundary |
|---|---|---|
| Lifting Capacity | 5 - 100t/Container 30 - 60t(customizable) | Source family data; exact model and conditions pending. |
| Span | 8 - 35m(non‑standard span available) | Source family data; exact model and conditions pending. |
| Lifting Height | 6 - 30m(customizable) | Source family data; exact model and conditions pending. |
| Working Duty | A5 - A8 | Source family data; exact model and conditions pending. |
| Applicable Container Size | 20′,40′,45′ standard containers | Source family data; exact model and conditions pending. |
| Control Method | Cabin control / Wireless remote control | Source family data; exact model and conditions pending. |
| Power Mode | Diesel generator / Cable reel power supply / Hybrid power | Source family data; exact model and conditions pending. |
| Power Supply | 380V/50Hz/3‑phase(220V/440V/60Hz customizable) | Source family data; exact model and conditions pending. |
| Certification | Pending evidence — source lists CE, ISO 9001 | No certificate file or model coverage supplied; no certification is asserted. |
| Travel System | Solid rubber tire, 90‑degree steering function | Source family data; exact model and conditions pending. |
| Optional Lifting Attachments | Hooks, Grabs, Electromagnetic chucks, Container spreader | Source family data; exact model and conditions pending. |
| Safety Protection System | Anti‑collision device, Wind‑proof anchoring, Travel limit, Emergency brake, Overload protection | Source claim; rating test evidence and model coverage pending. |
performance
Operating conditions & unverified limits.
The supplied material describes configuration options but does not include measured performance curves, a test method or an independently documented operating envelope.
- The listed duty, load and geometry ranges require a selected configuration and load spectrum; no load-test or engineering calculation was supplied.
- Source references to certification, full testing, reliability, price, export delivery and special-environment protection are not verified credentials or contractual commitments.
- A mobile design does not establish permission to travel with a suspended load. Ground bearing capacity, operating position, brakes / restraints and loaded-travel rules need the model manual.
Test and performance evidence pending
No fabricated load curve, motor-power chart, noise result or safety rating has been drawn for this preview. Provide model-specific test conditions and reports.
applications
Source-described application contexts.
Container transfers between yard blocks
The source identifies container relocation between storage blocks; capacity and spreader fit require selection.
Inland intermodal freight terminals
Highway, rail and warehousing transfer links are described for inland freight terminals.
Large components at manufacturing sites
Steel beams, pipe piles and moulds are identified for manufacturing and temporary project handling.
Temporary port storage and standby handling
Temporary storage and standby container handling are described; availability or emergency-service commitments are not established.
These are application descriptions, not verified customer projects or delivered equipment references.
features
Configuration & selection considerations.
Straight, crab and turning modes
The supplied copy lists straight, crab and turning modes. A steel gantry runs on rubber tyres rather than fixed yard rails. The source describes steering and relocation between operating zones.
Diesel, cable-reel and hybrid power
The supplied copy lists diesel, cable-reel and hybrid power. Hook, grab, magnet and container-spreader arrangements are listed as alternatives; capacity depends on the selected attachment.
Hook, grab, magnet or container spreader
The supplied copy lists hook, grab, magnet or container spreader. Diesel-generator, cable-reel and hybrid power are source options. Ground bearing, tyre pressure and steering clearance need a site-specific review.
Wind restraints, tyre and travel monitoring
The supplied copy lists wind restraints, tyre and travel monitoring. Diesel-generator, cable-reel and hybrid power are source options. Ground bearing, tyre pressure and steering clearance need a site-specific review.
compatibility
Check the interfaces before selection.
Use the actual load, geometry, support structure, duty cycle, power supply, control scheme and environment to review suitability. No universal fit or suitability is assumed.
Source headline: Heavy‑duty RTG Rubber Tyre Gantry Crane for Container Yard Handling. The full source table is a family / option range, not the specification of one selected unit. Model, drawing and test evidence remain pending.
proof
Certificates, drawings & project evidence.
Proof, downloads and video pending
No model certificate, test file, genuine delivery case, authorised customer reference, engineering download or product video was supplied. Source marketing mentions of certification or full testing are not displayed as verified credentials.
service
Technical support & order boundaries.
The supplied service description covers equipment selection discussions, customised drawing requirements, installation / operation documentation, procurement assistance and remote troubleshooting.
Document availability, OEM / ODM scope, inspection, delivery, installation, warranty, acceptance and after-sales obligations must be agreed for the selected product. No fixed lead time, price, stock or performance promise is added.
faq
Before requesting a quotation.
Which data should accompany an enquiry?
Provide load, span or outreach, lifting height, power supply, duty, environment and destination. Replacement parts also require the existing model and interfaces.
Are source ranges certified for every image?
No. Source values describe families and options. Exact model association, calculations, tests and certificates remain pending.
What are the lead time and warranty?
No confirmed terms have been supplied. Agree timing, price, warranty and service responsibilities for the selected configuration.
Is installation included?
Installation documents and remote technical support are described in source material. On-site work, commissioning and acceptance responsibilities remain to be agreed.
Project requirements
Discuss rtg rubber tyre gantry crane.
Share the load, dimensions, duty, environment, destination and project scope. Form delivery is configured locally; actual delivery and mailbox receipt still need verification.
