Column and multi-joint folding arms
A column supports a multi-joint folding boom. The source lists 360° column rotation and 270° secondary-arm articulation.

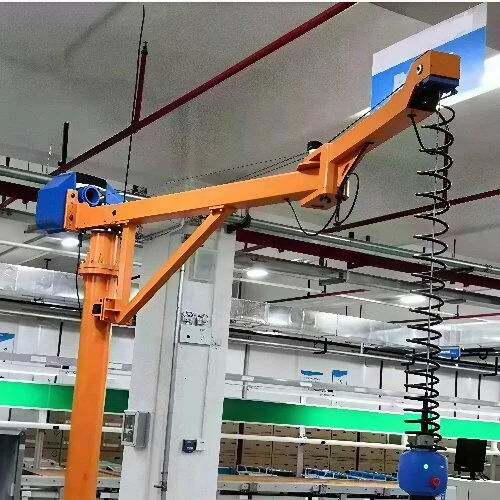

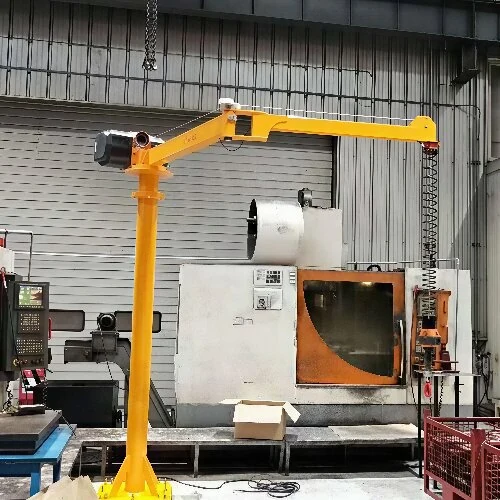

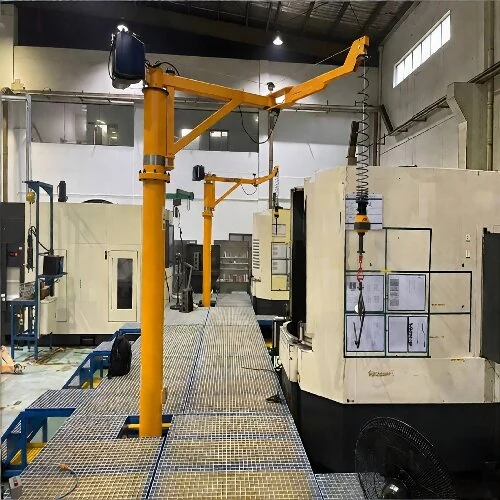

Supplied Intelligent Folding Arm Jib Crane image 1. Model, rating and image-use rights remain to be verified.
Jib Crane / crane detail review
Intelligent Folding Arm Jib Crane
An articulated folding-arm jib for small-component handling around machine tools.
- Lifting Capacity
- 100kg - 500kg(customizable)
- Folding Arm Assembly
- 1+1m / 1.25+1.25m / 1.5+1.5m / 2+2m
Source family ranges — exact configuration pending.
Source headline: 250kg Intelligent Folding Arm Jib Crane for Machine Tool Loading. The full source table is a family / option range, not the specification of one selected unit. Model, drawing and test evidence remain pending.
overview
What this equipment is designed to do.
An articulated folding-arm jib for small-component handling around machine tools.
A column supports a multi-joint folding boom. The source lists 360° column rotation and 270° secondary-arm articulation.
Arm combinations range from 1+1m to 2+2m in the table; no single reach, payload and height combination has been selected.
Force-sensing handles, floating mode and diagnostic interfaces are described. Collaborative safety, anti-drift and fine positioning require independent validation.
The table below preserves every supplied parameter row. Exact model association, drawings and test evidence remain open; source family maxima must not be combined into an assumed build.
structure
Structure & installation interfaces.
Handle and floating-mode controls
Arm combinations range from 1+1m to 2+2m in the table; no single reach, payload and height combination has been selected.
Hook, clamp or suction attachment
Force-sensing handles, floating mode and diagnostic interfaces are described. Collaborative safety, anti-drift and fine positioning require independent validation.
Engineering drawings pending
No approved dimensions, interface drawing, load reaction, wiring diagram or downloadable engineering file was supplied. Request the selected model and site-specific drawing before installation.
specifications
Capacity, geometry & control data.
Supplied technical table, transcribed without selecting a model. Ranges and options must not be combined into an assumed build.
| Parameter | Source value / pending evidence | Selection boundary |
|---|---|---|
| Lifting Capacity | 100kg - 500kg(customizable) | Source family data; exact model and conditions pending. |
| Folding Arm Assembly | 1+1m / 1.25+1.25m / 1.5+1.5m / 2+2m | Source family data; exact model and conditions pending. |
| Jib Slewing Angle | Column 360° / Auxiliary Arm 270° | Source family data; exact model and conditions pending. |
| Lifting Height | 1.75 – 3.5 m (customizable) | Source family data; exact model and conditions pending. |
| Working Duty | A3 - A4 | Source family data; exact model and conditions pending. |
| Control Method | Force-sensing Handle / Floating Mode / Wireless Remote Control | Source family data; exact model and conditions pending. |
| Lifting Attachments | Spreaders / Clamps / Suction Cups | Source family data; exact model and conditions pending. |
| Power Supply | 380V/50Hz/3‑phase(220V/440V/60Hz customizable) | Source family data; exact model and conditions pending. |
| Certification | Pending evidence — source lists CE, ISO 9001 | No certificate file or model coverage supplied; no certification is asserted. |
performance
Operating conditions & unverified limits.
The supplied material describes configuration options but does not include measured performance curves, a test method or an independently documented operating envelope.
- The listed duty, load and geometry ranges require a selected configuration and load spectrum; no load-test or engineering calculation was supplied.
- Source references to certification, full testing, reliability, price, export delivery and special-environment protection are not verified credentials or contractual commitments.
- Millimetre positioning, noise ≤60dB, zero-gravity / anti-drift and ISO/TS15066 claims lack validation; no collaborative-operation safety approval is asserted.
- Floor / wall / column reactions, attachment loads, stability and the swept operating envelope require model-specific drawings and assessment.
Test and performance evidence pending
No fabricated load curve, motor-power chart, noise result or safety rating has been drawn for this preview. Provide model-specific test conditions and reports.
applications
Source-described application contexts.
CNC machine loading and unloading
The source describes reaching around CNC equipment to load raw parts and unload finished workpieces.
Adjacent assembly workstations
Small components are described for transfer between adjacent assembly cells.
Motor and pump maintenance
Motor, pump and small-component lifting are identified for intermittent repair work.
Injection and stamping auxiliary handling
Part extraction and blank feeding are described around injection and stamping equipment; process integration needs assessment.
These are application descriptions, not verified customer projects or delivered equipment references.
features
Configuration & selection considerations.
Arm-length combinations and articulation
The supplied copy lists arm-length combinations and articulation. A column supports a multi-joint folding boom. The source lists 360° column rotation and 270° secondary-arm articulation.
Servo / floating-mode interface
The supplied copy lists servo / floating-mode interface. Arm combinations range from 1+1m to 2+2m in the table; no single reach, payload and height combination has been selected.
Hook, clamp and vacuum arrangements
The supplied copy lists hook, clamp and vacuum arrangements. Force-sensing handles, floating mode and diagnostic interfaces are described. Collaborative safety, anti-drift and fine positioning require independent validation.
Diagnostic and integration interfaces
The supplied copy lists diagnostic and integration interfaces. Force-sensing handles, floating mode and diagnostic interfaces are described. Collaborative safety, anti-drift and fine positioning require independent validation.
compatibility
Check the interfaces before selection.
Use the actual load, geometry, support structure, duty cycle, power supply, control scheme and environment to review suitability. No universal fit or suitability is assumed.
Source headline: 250kg Intelligent Folding Arm Jib Crane for Machine Tool Loading. The full source table is a family / option range, not the specification of one selected unit. Model, drawing and test evidence remain pending.
proof
Certificates, drawings & project evidence.
Proof, downloads and video pending
No model certificate, test file, genuine delivery case, authorised customer reference, engineering download or product video was supplied. Source marketing mentions of certification or full testing are not displayed as verified credentials.
service
Technical support & order boundaries.
The supplied service description covers equipment selection discussions, customised drawing requirements, installation / operation documentation, procurement assistance and remote troubleshooting.
Document availability, OEM / ODM scope, inspection, delivery, installation, warranty, acceptance and after-sales obligations must be agreed for the selected product. No fixed lead time, price, stock or performance promise is added.
faq
Before requesting a quotation.
Which data should accompany an enquiry?
Provide load, span or outreach, lifting height, power supply, duty, environment and destination. Replacement parts also require the existing model and interfaces.
Are source ranges certified for every image?
No. Source values describe families and options. Exact model association, calculations, tests and certificates remain pending.
What are the lead time and warranty?
No confirmed terms have been supplied. Agree timing, price, warranty and service responsibilities for the selected configuration.
Is installation included?
Installation documents and remote technical support are described in source material. On-site work, commissioning and acceptance responsibilities remain to be agreed.
Project requirements
Discuss intelligent folding arm jib crane.
Share the load, dimensions, duty, environment, destination and project scope. Form delivery is configured locally; actual delivery and mailbox receipt still need verification.
Displayed contact details remain unverified. Form delivery is configured locally; actual message delivery and mailbox receipt still need verification. Use non-sensitive information until then.
